Description & Features

---

Description:

Yotano DC(Deep cycle) series batteries uses a different super-c additives in the positive plates and special AGM separators, The DC series features 30-50% higher cyclic life with 8 years of float life when compared to General Standard Seriese. This series is highly suited for very unreliable power applications requiring the batteries to provide extra cyclic life performance such as PV solar system applications, BTS system, small RE systems and electric vehicles.

DC series battery can be widely used for follows area:

• Solar Power System
• Wind Power System
• Telecom Power Systems
• UPS Systems
• Security Systems
• Rail Road Utilities
• Etc

Feature:

1. Three years warranty for solar cycle use daily.
2. Wide Operating Temperature Range From -15C To 55C
3. 30% longer life than regular AGM lead acid battery.
4. Longer life and higher stability for deep cycle use.
5. Use Super-C additives lead plates: Deep discharge recovery capability.

---

---

Industrial VRLA Battery-Deep Cycle Series
Model	Rated Voltage	Rated Capacity	Terminal	Battery Dimension（mm）				Weight (KGS)	Spec
	(V)	(AH)		Length	Width	Height	Total Height	±3%	PDF
DC12-4	12V	4.0 AH	F1/F2	90	70	101	106	1.4 KG	View
DC12-5	12V	5.0 AH	F1/F2	90	70	101	106	1.6 KG	View
DC12-7	12V	7.0 AH	F1/F2	151	65	95	100	2.2 KG	View
DC12-8	12V	8.0 AH	F1/F2	151	65	95	100	2.3 KG	View
DC12-9	12V	9.0 AH	F1/F2	151	65	95	100	2.56 KG	View
DC12-12	12V	12.0 AH	F1/F2	151	98	95	100	3.9 KG	View
DC12-17	12V	17.0 AH	L1/M5	181	76	167	167	5.27 KG	View
DC12-18	12V	18.0 AH	L1/M5	181	76	167	167	5.5 KG	View
DC12-20	12V	20.0 AH	L1/M5	181	76	167	167	5.95 KG	View
DC12-24	12V	24.0 AH	L2/M5	166	175	125	125	8.0 KG	View
DC12-26	12V	26.0 AH	L2/M5	166	175	125	125	9.0 KG	View
DC12-33	12V	33 AH	L3/M6	196	131	161	168	10.6 KG	View

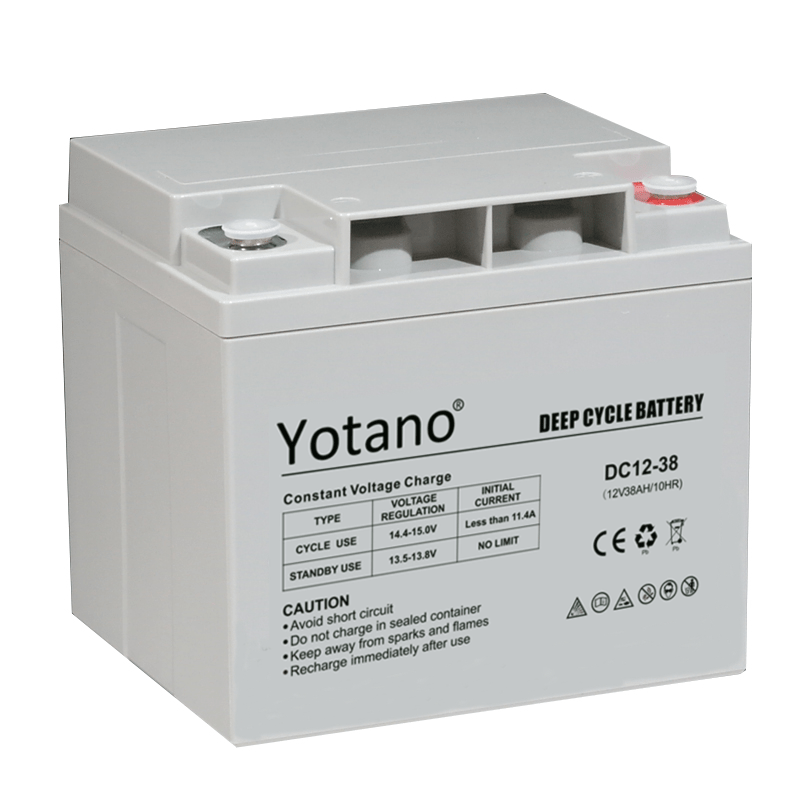

DC12-38	12V	38 AH	L4/M6	196	166	176	176	12.5 KG	View
DC12-40	12V	40 AH	L4/M6	196	166	176	176	13.2 KG	View
DC12-55	12V	55 AH	L5/M6	229	137	205	210	17.2 KG	View
DC12-65	12V	65 AH	M6	350	169	179	179	20.4 KG	View
DC12-75	12V	75 AH	L5/M6	260	169	213	217	22.0 KG	View
DC12-90	12V	90 AH	M6/M8	306	168	211	215	28.2 KG	View
DC12-100	12V	100 AH	M8	328	172	218	222	30.2 KG	View
DC12-120	12V	120 AH	M8	406	173	237	237	35.5 KG	View
DC12-150	12V	150 AH	M8	484	170	240	240	43.0 KG	View
DC12-200	12V	200 AH	M8	522	240	218	222	60.5 KG	View
DC12-250	12V	250 AH	M8	520	269	219	223	72.5 KG	View

---

---

---
