Industrial VRLA Battery

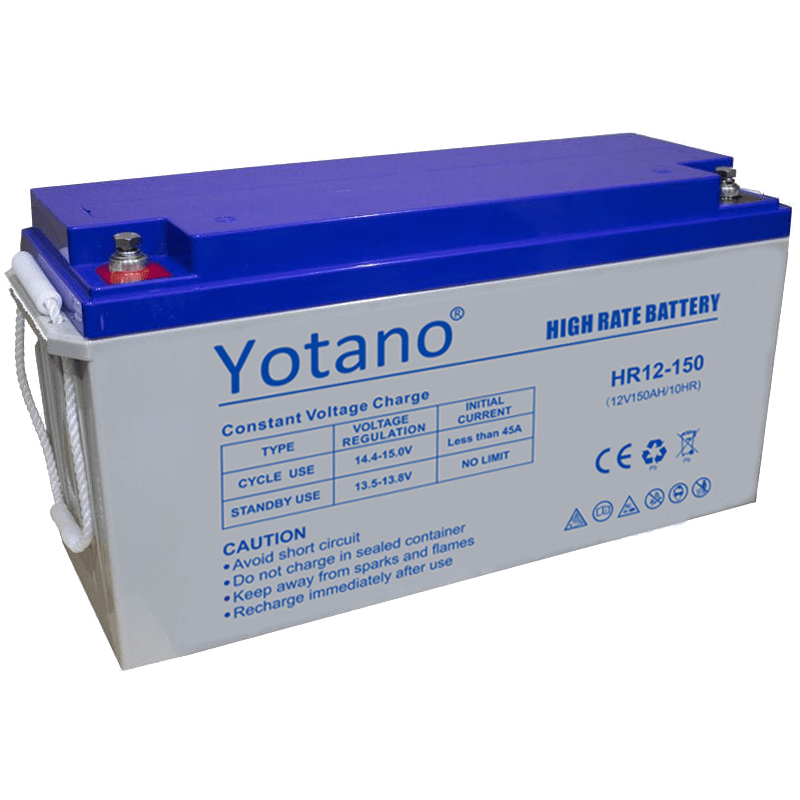

HR12-150 12V150AH

High Rate 12V150AH battery

  • Battery Model: HR12-150 / 12V150AH
  • Dimension: 483*170*241mm
  • Battery Weight: 46Kg
  • Application: Security system/ Emergency Lighting / UPS etc
  • HR Battery Voltage Range:12V
  • HR Battery Capacity Range: 5AH-300AH
  • OEM:Accepted
  • Lead time: 2-3 Weeks
  • Shipping port:Shenzhen /Shanghai etc

Description & Features


Description:

Yotano High Rate (HR) Battery Series Is Especially Designed For High Rate Discharge Applications By Using Strong Grids And Specially Designed Active AGM Separator. HR Series Offers Stable Performance During High Current Discharge; HR Series Is Highly Suited For High Rate UPS/EPS Systems And Power Applications.

High Rate Battery Application:

  • UPS Systems
  • Security Systems
  • Etc
  • Control Equipments
  • Medical Equipments
  • Power Tools
  • Toys
  • Etc

Feature:

  1. High rate discharge performance, high specific power, and over 30% higher energy output than GS series battery.
  2. Unique corrosion resistant grid alloy and special electrolyte solution, thus keeping excellent low temperature performance and long service life.
  3. High purity materials, our AGM lead acid battery has nearly low self discharge rate.
  4. Excellent Deep Discharge Recovery Capability
  5. Valve Sealed Design, No Free Electrolyte, Maintenance Free

Specification


Industrial VRLA Battery – High Rate Series


Industrial VRLA Battery-High Rate Series
ModelRated VoltageRated CapacityTerminalBattery Dimension(mm)Weight (KGS)Spec
(V)(AH)LengthWidthHeightTotal Height±3%PDF
HR12-412V5.0 AHF1/F290701011061.42 KGView
HR12-512V5.0 AHF1/F290701011061.6 KGView
HR12-712V7.0 AHF1/F215165951002.15 KGView
HR12-812V8.0 AHF1/F215165951002.35 KGView
HR12-912V9.0 AHF1/F215165951002.48 KGView
HR12-1212V12.0 AHF1/F215198951003.4 KGView
HR12-2012V18.0 AHL1/M5181761671675.55 KGView
HR12-2612V26.0 AHL2/M51661751251258.0 KGView
HR12-3312V33 AHL3/M619613116116810.2 KGView
HR12-3812V38 AHL4/M619616617617611.8 KGView
HR12-4212V42 AHL4/M619616617617613.5 KGView
HR12-5512V55 AHL5/M622913720521017.2 KGView
HR12-6512V65 AHM635016917917920.4 KGView
HR12-7512V75 AHL5/M626016921321723.0 KGView
HR12-9012V90 AHM6/M830616821121525.2 KGView
HR12-10012V100 AHM832817221822228.3 KGView
HR12-11012V110 AHM832817221822231.8 KGView
HR12-12012V120 AHM840617323723733.5 KGView
HR12-15012V150 AHM848417024024042.0 KGView
HR12-20012V200 AHM852224021822259.5 KGView
HR12-25012V250 AHM852026921922371.5 KGView
